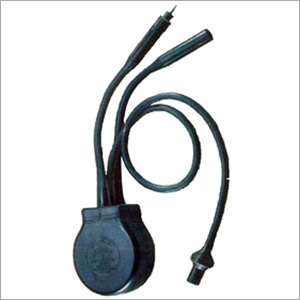

Isolating Transformer

Isolating Transformer
Isolating Transformer
Product Code : I-01
Brand Name : Insel
Product Description

We are the renowned exporter, manufacturer & supplier of a superior quality range of Isolating Transformer.  The offered isolating transformer is used in air field lighting system and provides isolation between the primary high voltage series circuit and low voltage secondary circuit. This isolating transformer provides a perfectly balanced neutral output with zero surges and spikes. The offered transformers are used to maintain continuity of high voltage primary circuit encase one or more lamps are not in working order and to maintain the supply of 20 Amps.

Features:



  • Easy installation
  • Less maintenance
  • Durable standard
  • High strength

Application:
Isolating transformers are used in air field lighting system and provide isolation between the primary high voltage series circuit and low voltage secondary circuit. The primary of all transformers are connected in series and fed by constant current regulator. Secondary feeds the individual airport runway light.
Isolating transformers are used to maintain continuity of high voltage primary circuit incase one or more lamps are not in working order and to maintain the supply of 20 Amps. From the 6.6 amps. Series circuit or vice versa alternatively to suppl 6.6 Amps. From 8.3Amps in the series circuit.

Specification:
IS: In compliance with IS-12290-1987
FAA: In compliance with AC-150/5345-47
IAF: In compliance with CRI/Ale/107 of 1989
The toroidal magnetic core made from cold rolled silicon steel, grain oriented lamination of low loss quality. The core is insulated by nylon cap or polyester paper.

The primary and secondary windings are of standard quality super enamailed copper wire.
The primary is a single core made from annealed, tinned, copper wire, EPR insulated and PCP sheathed, suitable for 5000V operations. One secondary, cable end is moulded with plug and other with receptacle as per customers requirement.
The secondary is two core made of annealed, tinned, copper wire, ERP insulated and PCP sheathed. The secondary cable end is moulded with receptacle as per requirement of the customers .
The isolating transformer is epoxy casted and cured under vaccum.
The Epoxy casted assembly is rubber moulded to with stand outdoor exposure, immersion in water or direct burial in earth containing concentration of oil, acids and alkalies.



INSEL RECTIFIERS (INDIA) PVT. LTD.
151, Udyog Kendra, Greater Noida - 201306, Uttar Pradesh, India
Mr. Hafeez Ahmad (Director)
