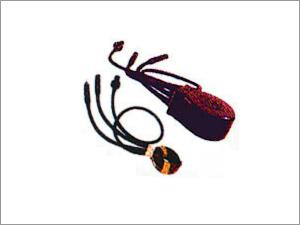

Bildal Transformer For Airport Lighting System

Bildal Transformer For Airport Lighting System
Bildal Transformer For Airport Lighting System
Product Code : I-07
Brand Name : Insel
Product Description

Our organization is the noteworthy exporter, manufacturer & supplier of Bildal Transformer for Airport Lighting System. To manufacture this product, we are assisted by a team of our hardworking workers, possessing many years of encounter in their related field. Our Bildal Transformer for Airport Lighting System is used in air field lighting system and provide isolation between the primary high voltage series circuit and low voltage secondary circuit. Also, our provided transformer is obtainable in diverse specifications to attain maximum satisfactions for our customers.

Features:





  • Dimensional accuracy
  • Precisely designed
  • Sturdy construction
  • Long working life





Application:
Isolating transformers are used in air field lighting system and provide isolation between the primary high voltage series circuit and low voltage secondary circuit. The primary of all transformers are connected in series and fed by constant current regulator. Secondary feeds the individual airport runway light.
Isolating transformers are used to maintain continuity of high voltage primary circuit incase one or more lamps are not in working order and to maintain the supply of 20 Amps. From the 6.6 amps. Series circuit or vice-versa alternatively to suppl 6.6 Amps. From 8.3Amps in the series circuit.

Specification:

  • IS: In compliance with IS-12290-1987
  • FAA: In compliance with AC-150/5345-47.
  • IAF: In compliance with CRI/Ale/ 107 of 1989

PRIMARY

SECONDARY AMPERES

SECONDARY

WATT

AMPERES

POWER FACTOR PERCENT

EFFICI- ENCY

FULL LOAD

SHORT CIRCUITED

LOAD OHMS

MAX OPEN CIRCURED VOL-RMS

TYPE NO.

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

45

6.6

95

80

6.53-6.7

6.6-7.1

1.15

25

BE-1

45

20.0

95

80

6.53-6.7

6.6-7.1

1.15

25

BE-2

45

8.3

96

81

6.47-6.73

6.66- 6.94

1.03

13

BE-3

65

8.3

96

84

6.47-6.73

6.66- 6.94

1.49

19

BE-4

65

6.6

95

80

6.53-6.70

6.6-7.1

1.60

30

BE-5

100

6.6

95

85

6.53-6.70

6.6-7.1

2.44

70

BE-6

100

20.0

95

85

6.53-6.70

6.6-7.1

2.44

70

BE-7

200

8.3

96

88

6.47- 6.73

6.66- 6.94

4.60

60

BE-8

210

6.6

95

90

6.53-6.70

6.6-7.1

4.82

100

BE-9

210

20.0

95

90

6.53-6.67

6.6-7.1

4.82

100

BE-10

300

6.6

95

90

19.8-20.2

20.0-22.0

0.90

70

BE-11

300

20.0

95

90

19.8-20.2

20.0-22.0

0.90

70

BE-12

300

6.6

95

90

6.53-6.67

6.6-7.1

8.25

135

BE-13

300

20.0

95

90

6.53-6.67

6.6-7.1

8.25

135

BE-14

500

6.6

95

90

19.8-20.2

20.0-22.0

1.35

70

BE-15

500

20.0

95

90

19.8-20.2

20.0-22.0

1.35

70

BE-16
